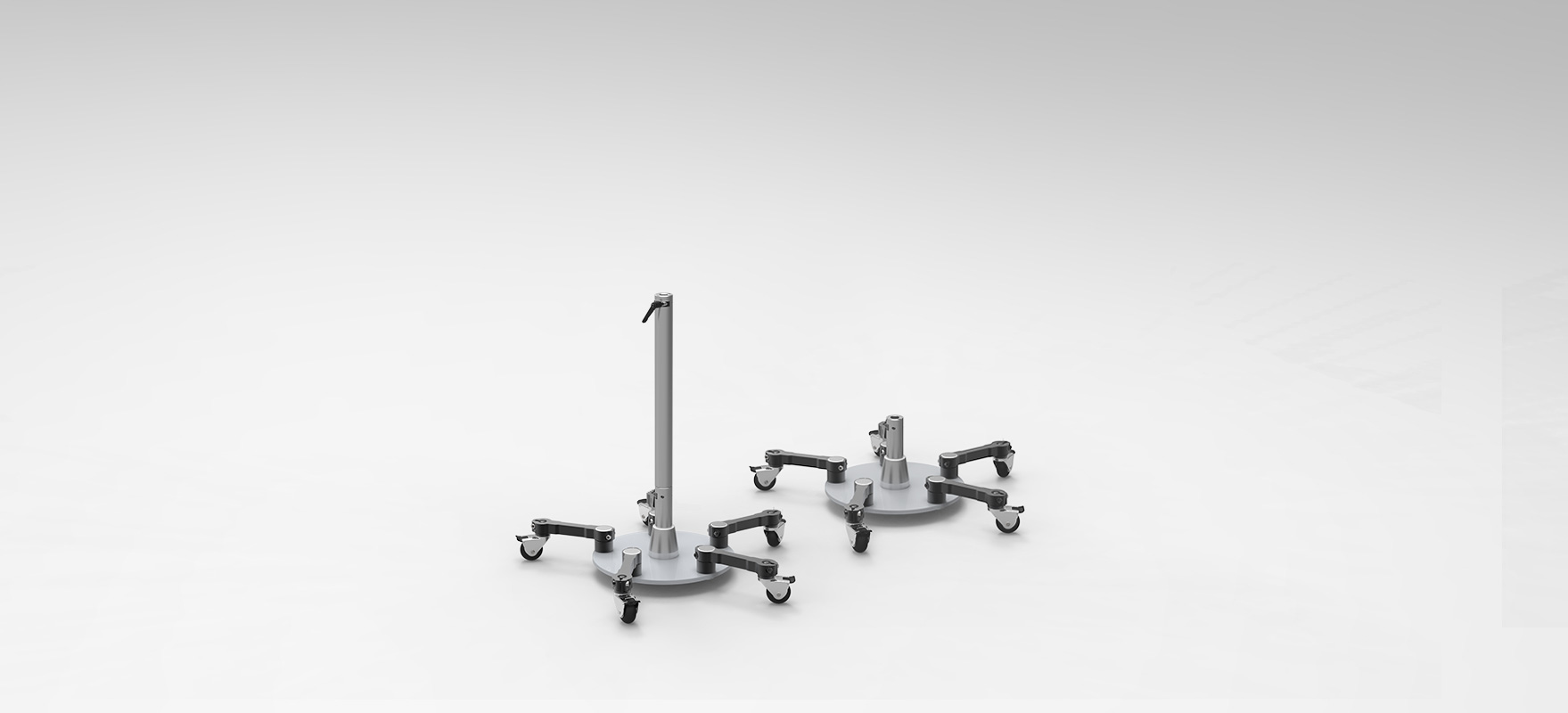

Rolling Floor Stand

This Rolling Floor Stand is another opportunity to use your Lift and Lock System. Simple detach your system by the Vertical Bar and move it to the Floor Stand.

Part # 8123

Wall Mounted Track

A Wall Mounted Track is a useful fixture in a room that allow a sliding Direct Mount to host a Vertical Bar. By being attached to the wall, this system provides great stability while being able to maneuver around the perimeter of the room.

Part # N/A

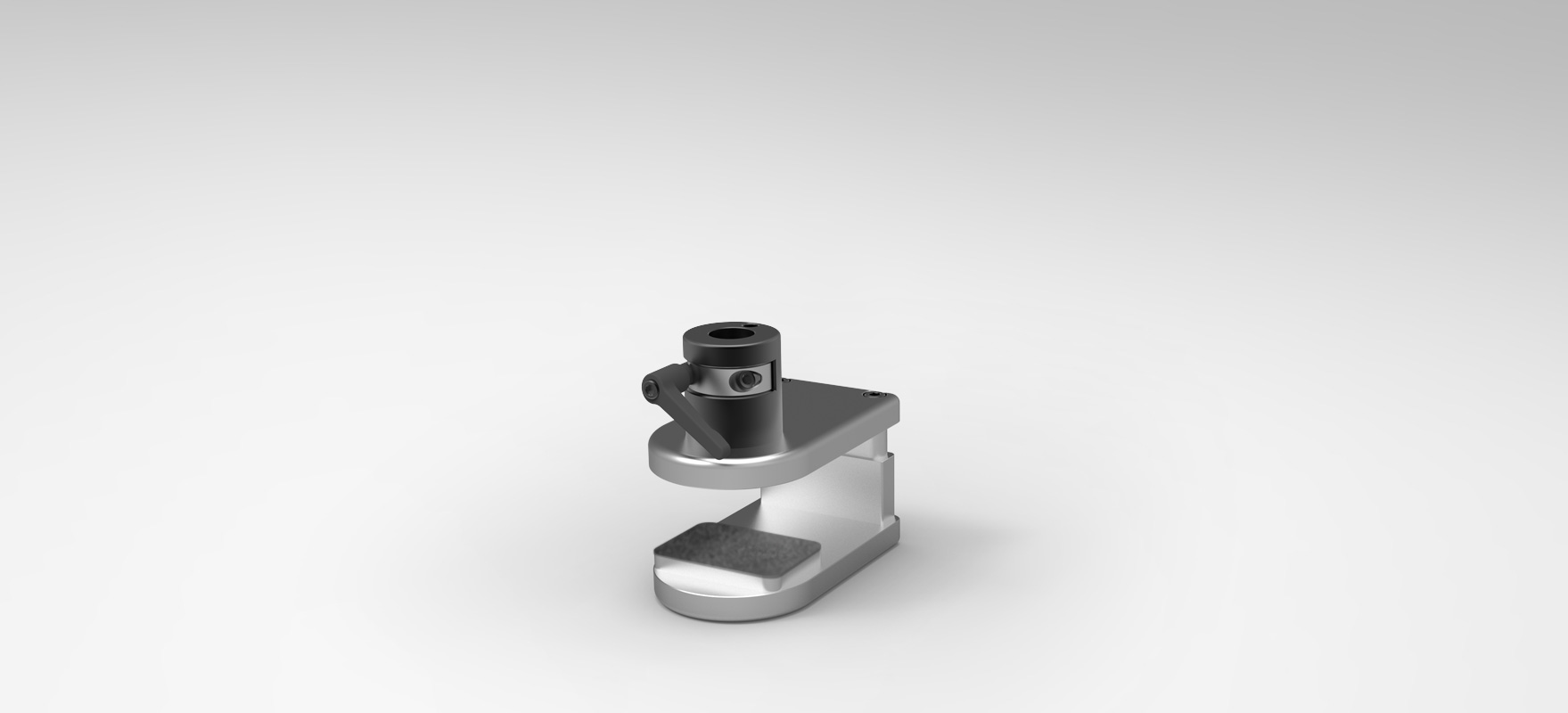

Table Clamp

A Lift and Lock Table Clamp is a strong way to mount onto tables and desks. Clamping onto a table adds that structure to your system while not requiring a large footprint on the surface of the furniture.

Part # 8214

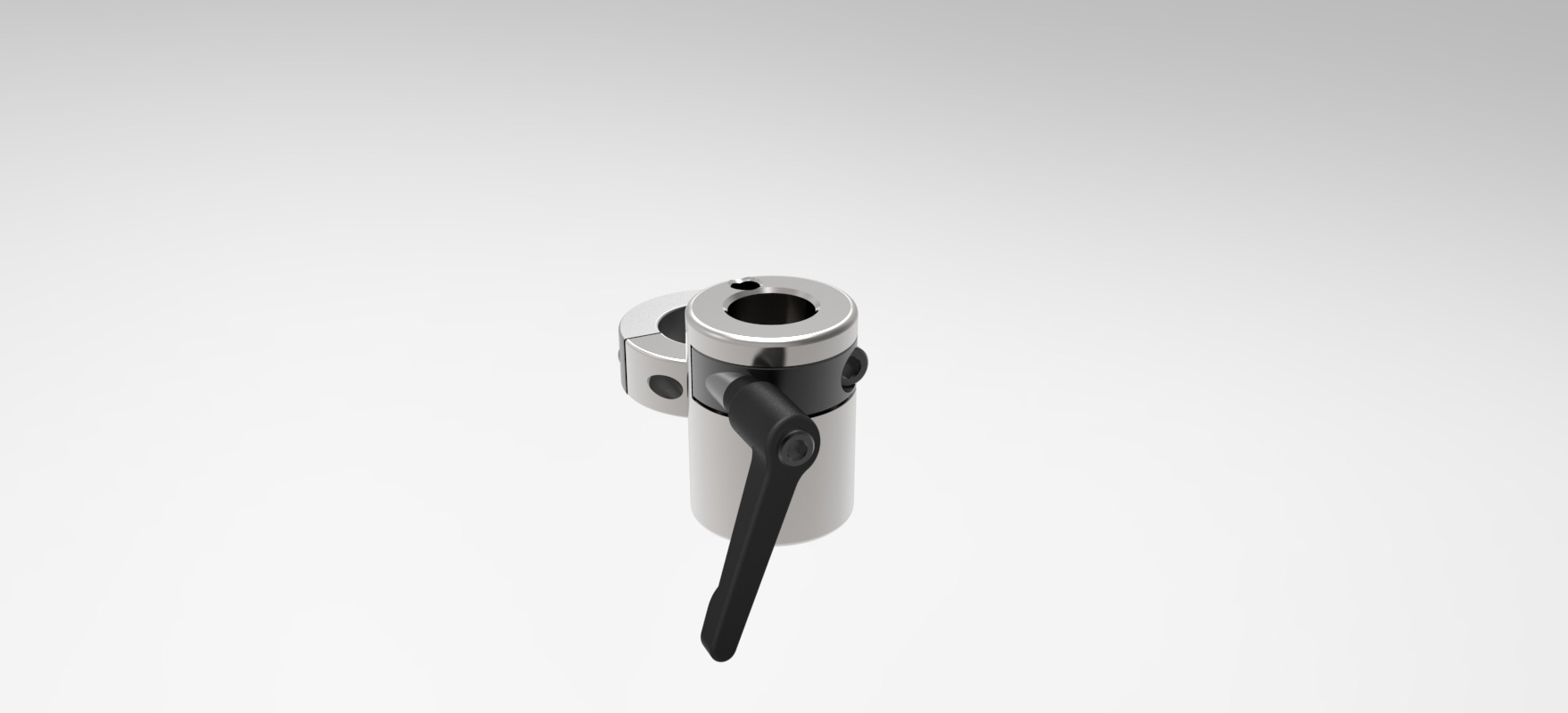

Direct Mount Socket

The Direct Mount Socket is used in instances where vertical bars are available to be mounted on. It offers a close and secure connection to a frame and does not require a socket bar.

Part # 7106

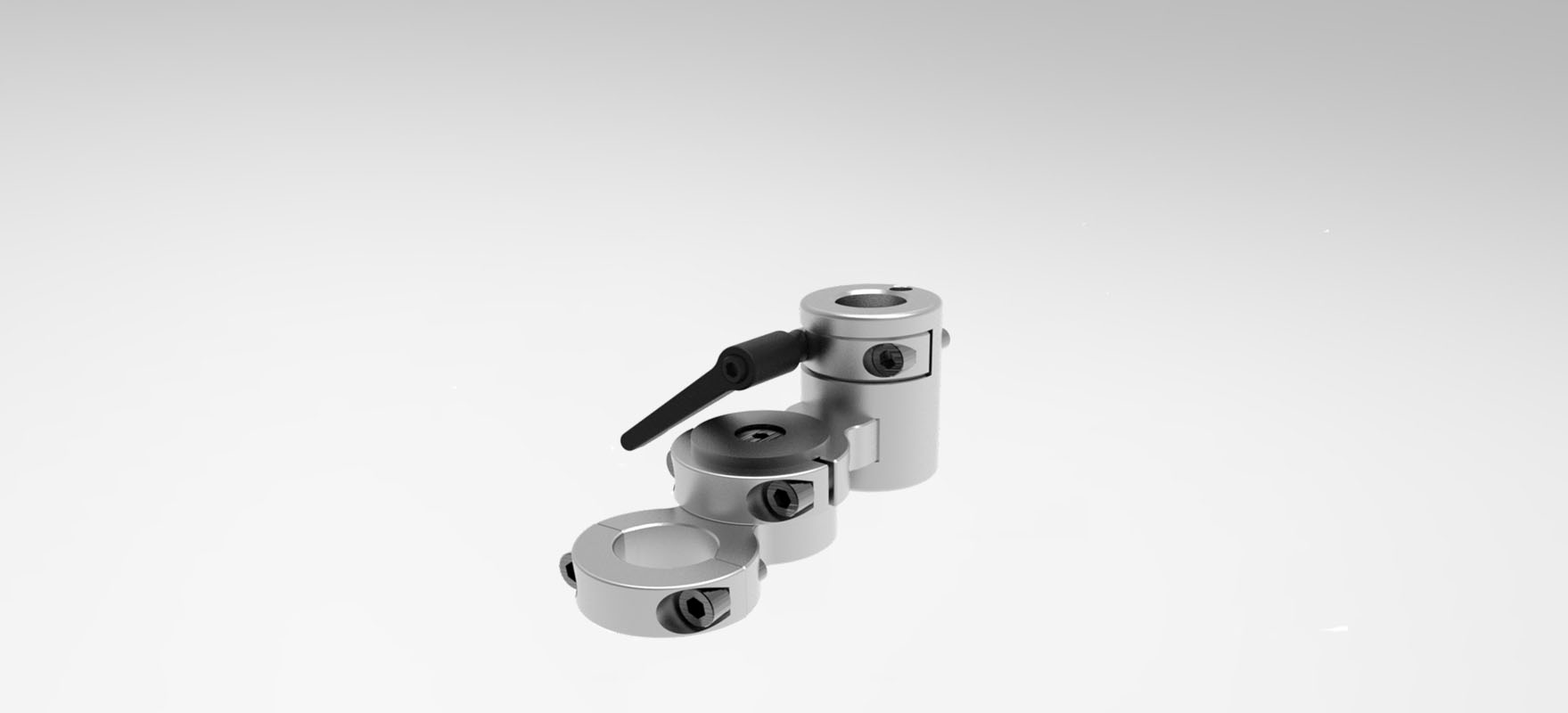

Serrated Direct Mount Socket

The Serrated Direct Mount Socket mounts to vertical bars. It offers the close connection of a Direct Mount Socket with the added serrated feature, adding another level of customization to the mounting system.

Part # 8163

Zero Clearance Bracket

The Zero Clearance Bracket is intended to mount to a round, horizontal bar and is coupled with a socket bar. These brackets come in pairs to remove any movement in the socket bar.

Part # 6145

Full Ring Bracket

The Full Ring Bracket is intended to mount to a round, horizontal bar and is coupled with a socket bar. These brackets come in pairs to remove any movement in the socket bar.

Part # 6146

T-Nut Bracket

The T-Nut Bracket is useful when a single T-Track is present. The T-Nuts slide into the track and are tightened to clamp to the track.

Part # 6446

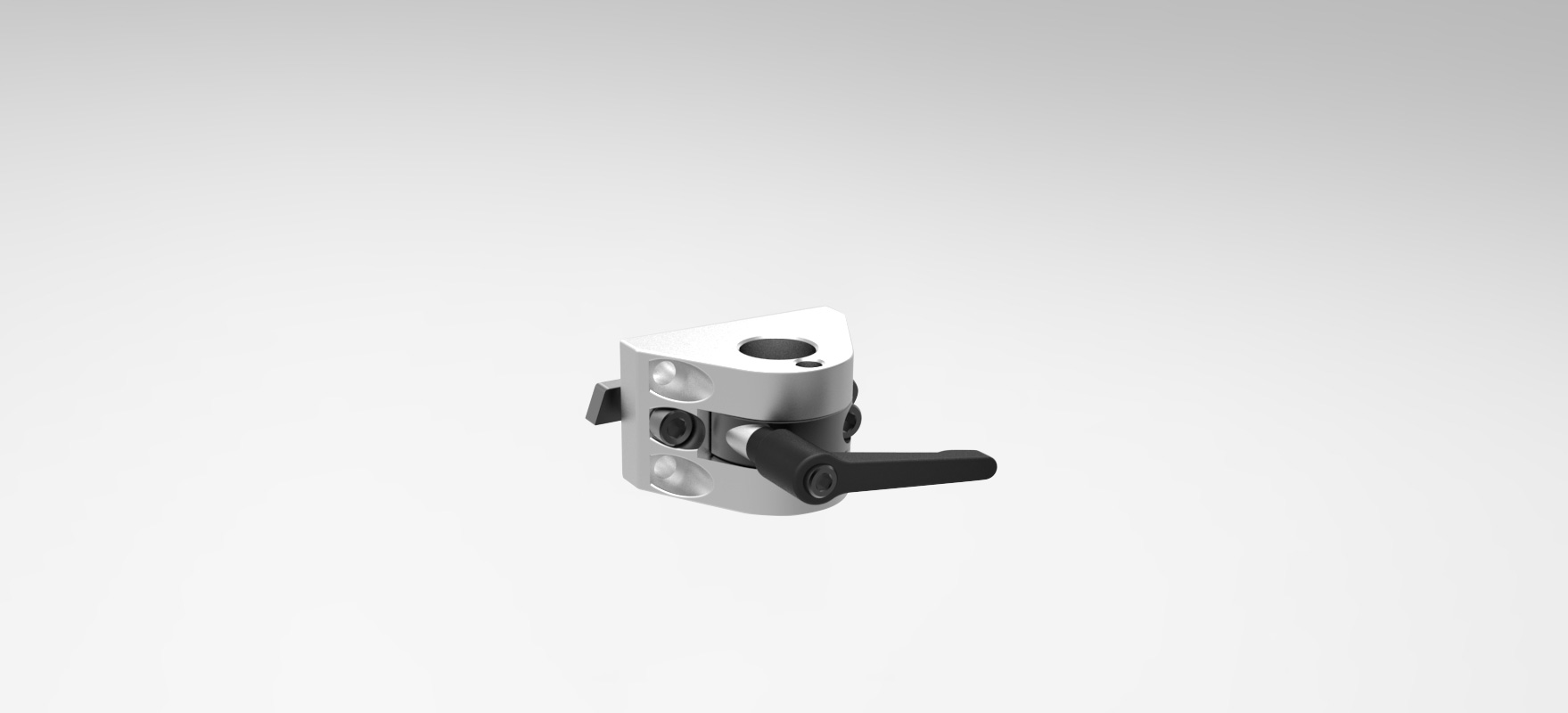

T-Track Direct Mount Socket

The T-Track Direct Mount Socket is useful when a single or double T-Track is present. The T-Nuts allow the socket to slide to a desired position and are then tightened to clamp to the track.

Part # 8115

Square Tube Bracket

The Square Tube Bracket is designed to fit on 1 inch square tubing. By mounting to a square tube, the corners affectively deter the clamp from shifting.

Part # 8115

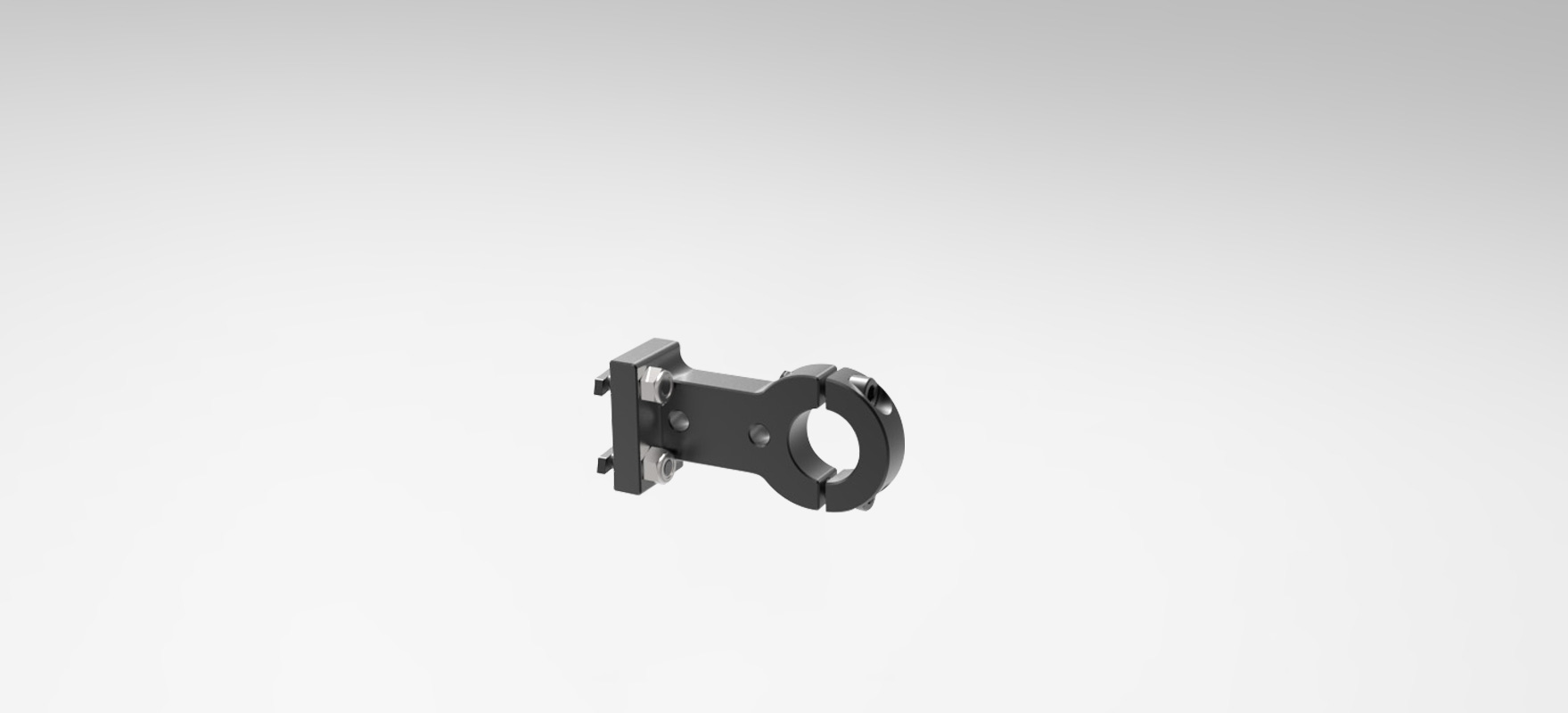

Double T-Nut Bracket

The Double T-Nut Bracket is useful when a double T-Track is present. The T-Nuts slide into the track and are tightened to clamp to the track.

Part # 7992

14 Inch Socket Bar

The 14 Inch Socket Bar is a general purpose length bar. It accepts vertical bars in situations where frame clamps were necessary and added distance is not.

Part # 6147

22 Inch Socket Bar

The 22 Inch Socket Bar is an extended length bar. It accepts vertical bars in situations where frame clamps were necessary and there is a need for added distance between the chair and the vertical bar.

Part # 7635

Single T-Track

T-Tracks are commonly found on Invacare chairs and appear similar to this. A Single T-Track only has one slot running the length of the part for T-Nuts. A bracket with T-Nuts would slide into the track.

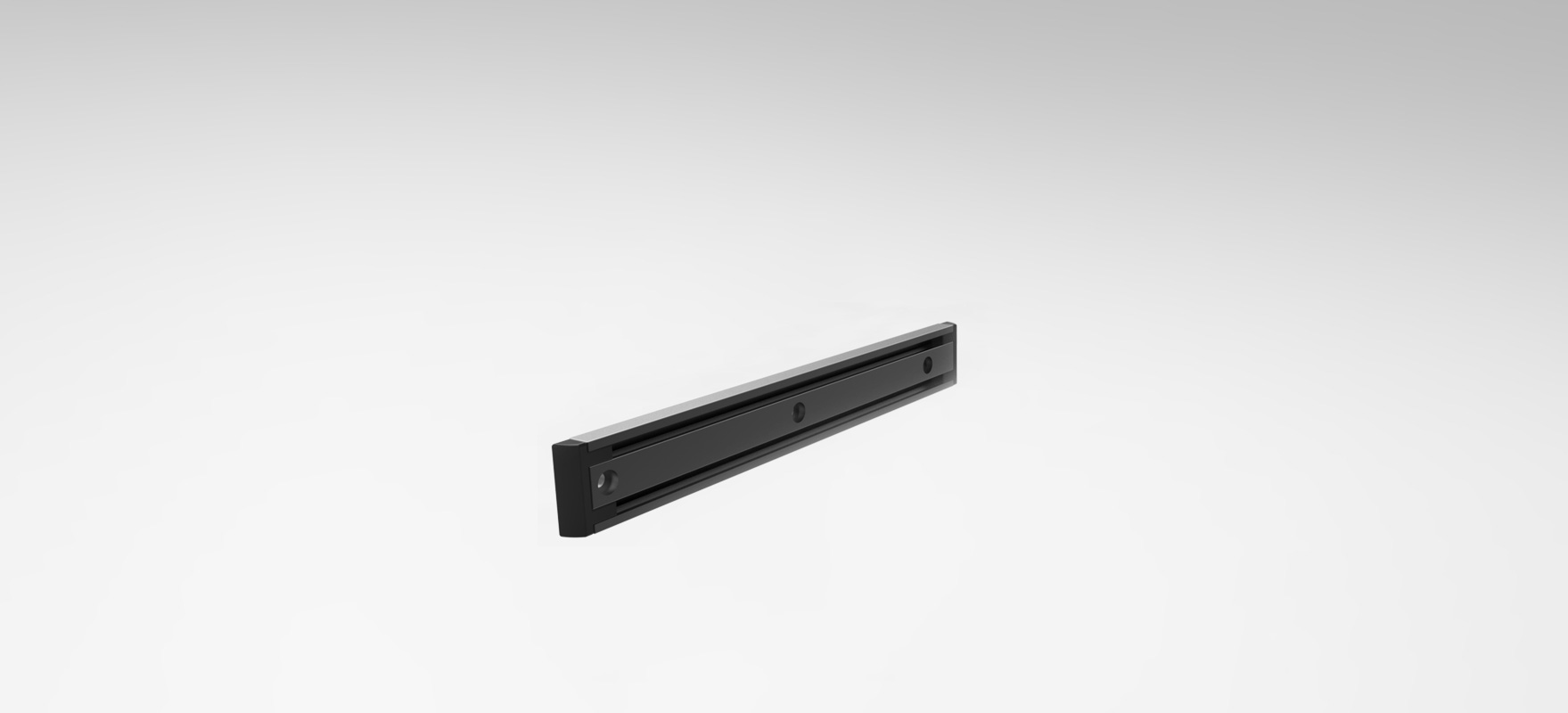

Double T-Track

T-Tracks are commonly found on Permobile chairs and appear similar to this. A Double T-Track has two slots running the length of the part for T-Nuts. A bracket with T-Nuts would have a nut slide into each track.

4 Inch Vertical Bar

Vertical Bars can be mounted off either Direct Mount Sockets or Socket Bars. A vertical bar is your connection to our variety of arms.

Part # 8385

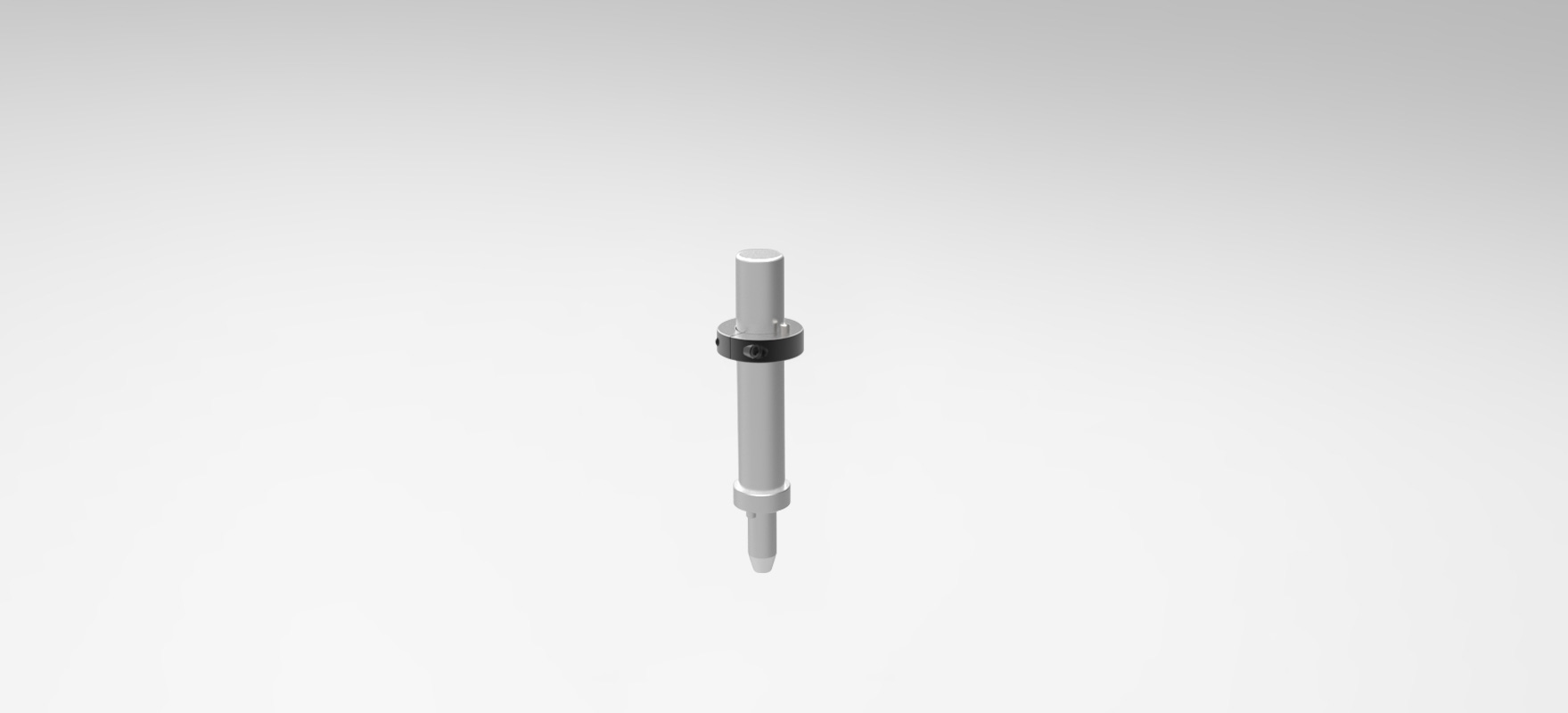

6 Inch Vertical Bar

Vertical Bars can be mounted off either Direct Mount Sockets or Socket Bars. A vertical bar is your connection to our variety of arms.

Part # 8071

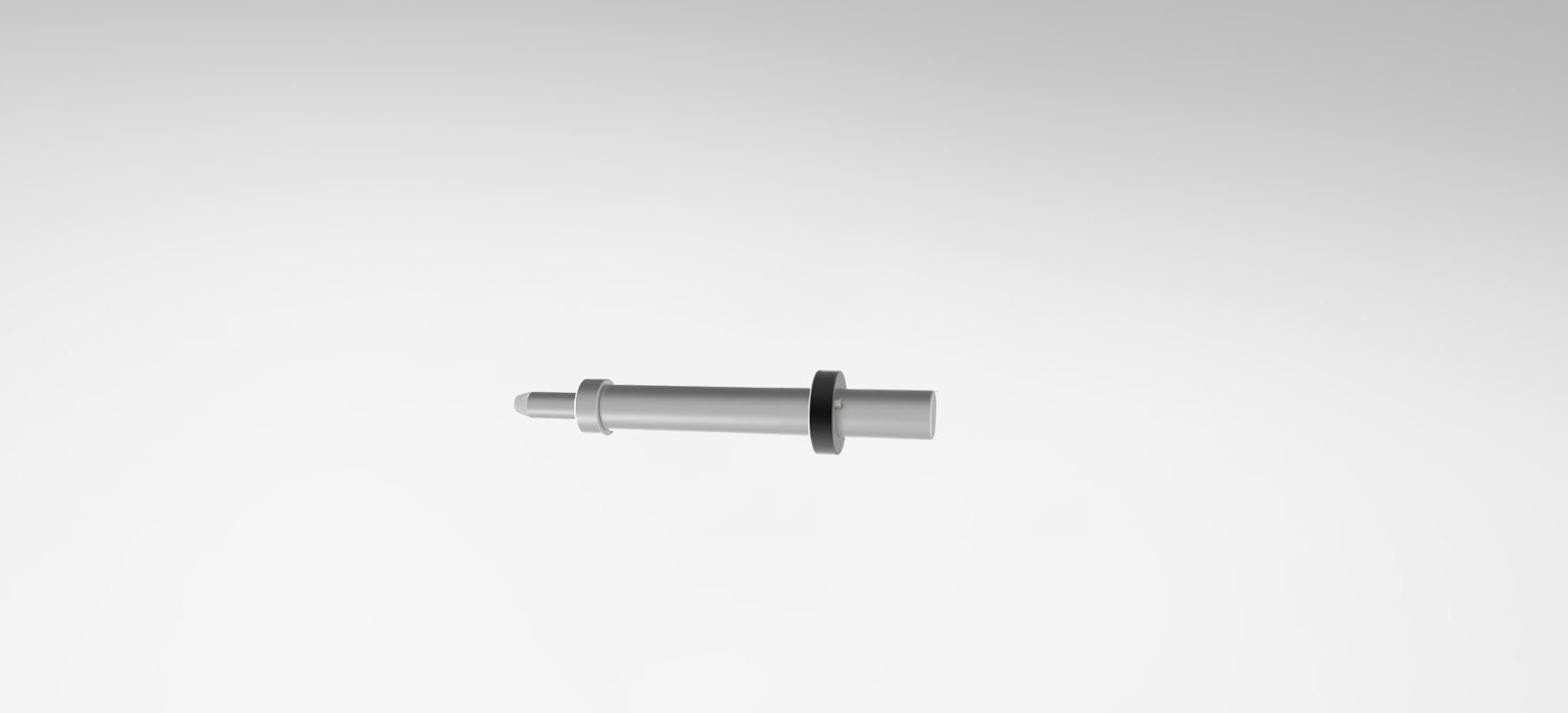

8 Inch Vertical Bar

Vertical Bars can be mounted off either Direct Mount Sockets or Socket Bars. A vertical bar is your connection to our variety of arms.

Part # 8924

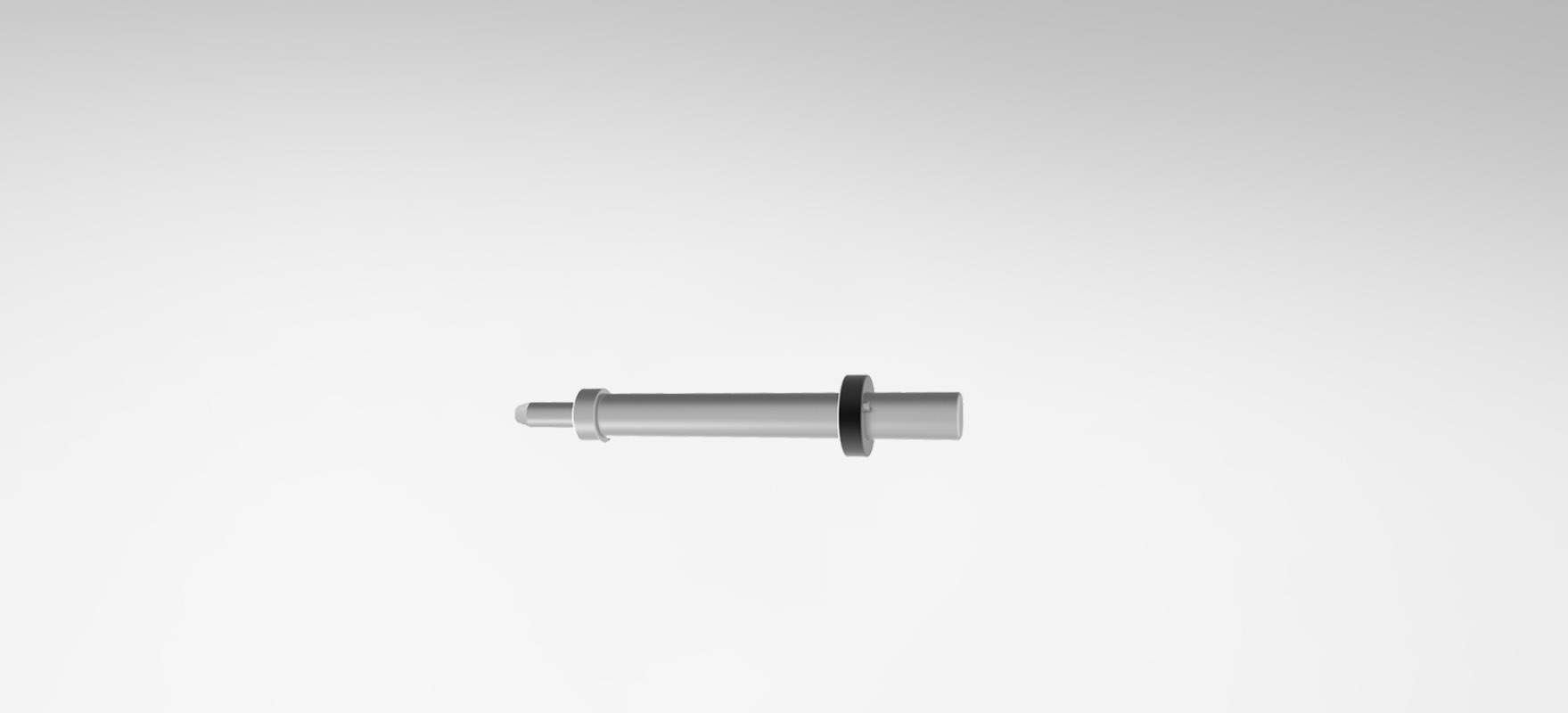

10 Inch Vertical Bar

Vertical Bars can be mounted off either Direct Mount Sockets or Socket Bars. A vertical bar is your connection to our variety of arms.

Part # 8514

12 Inch Vertical Bar

Vertical Bars can be mounted off either Direct Mount Sockets or Socket Bars. A vertical bar is your connection to our variety of arms.

Part # 8070

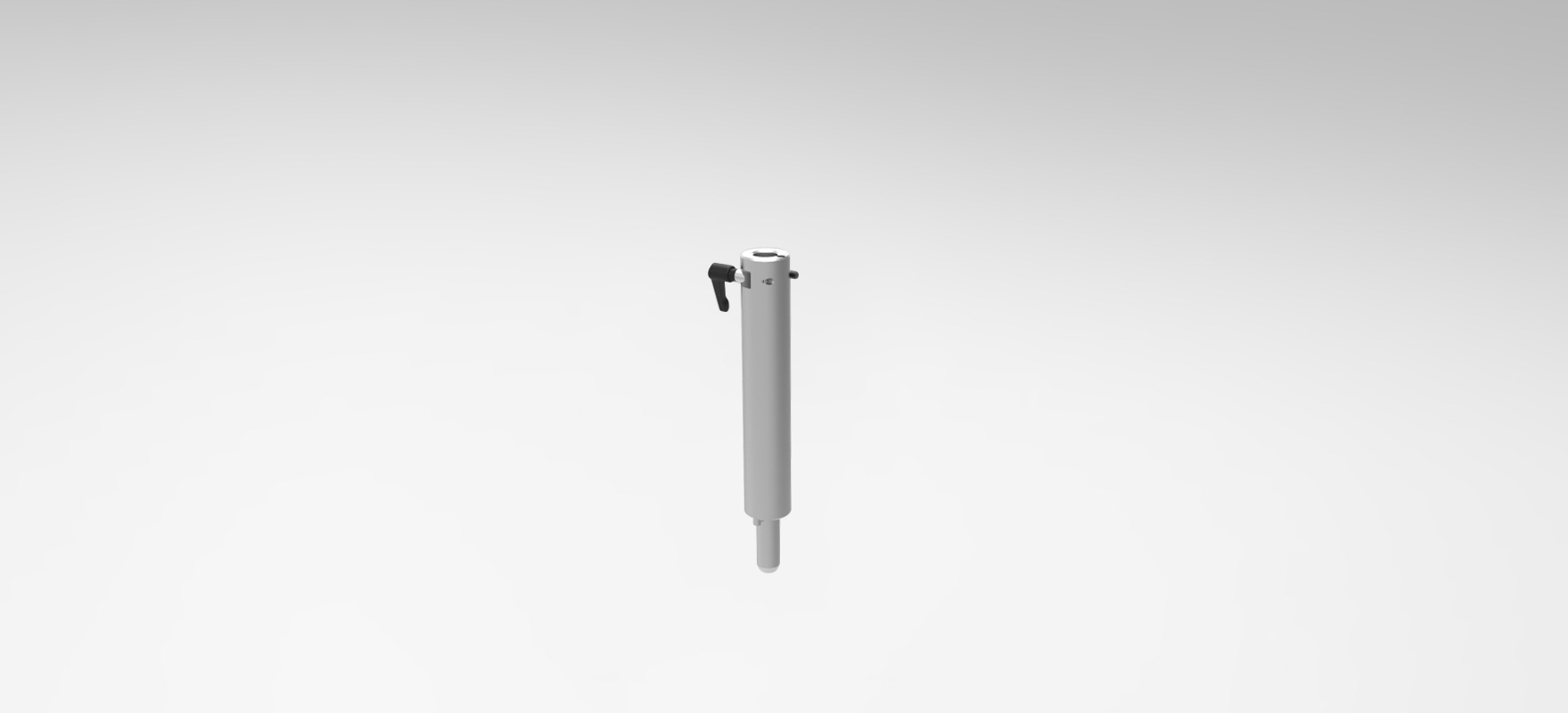

8 Inch Extension Bar

The 8 Inch Extension Bar can be used in between any socket bar or direct mount and a vertical bar. It provides additional height to the vertical reach of the assembly.

Part # 8081

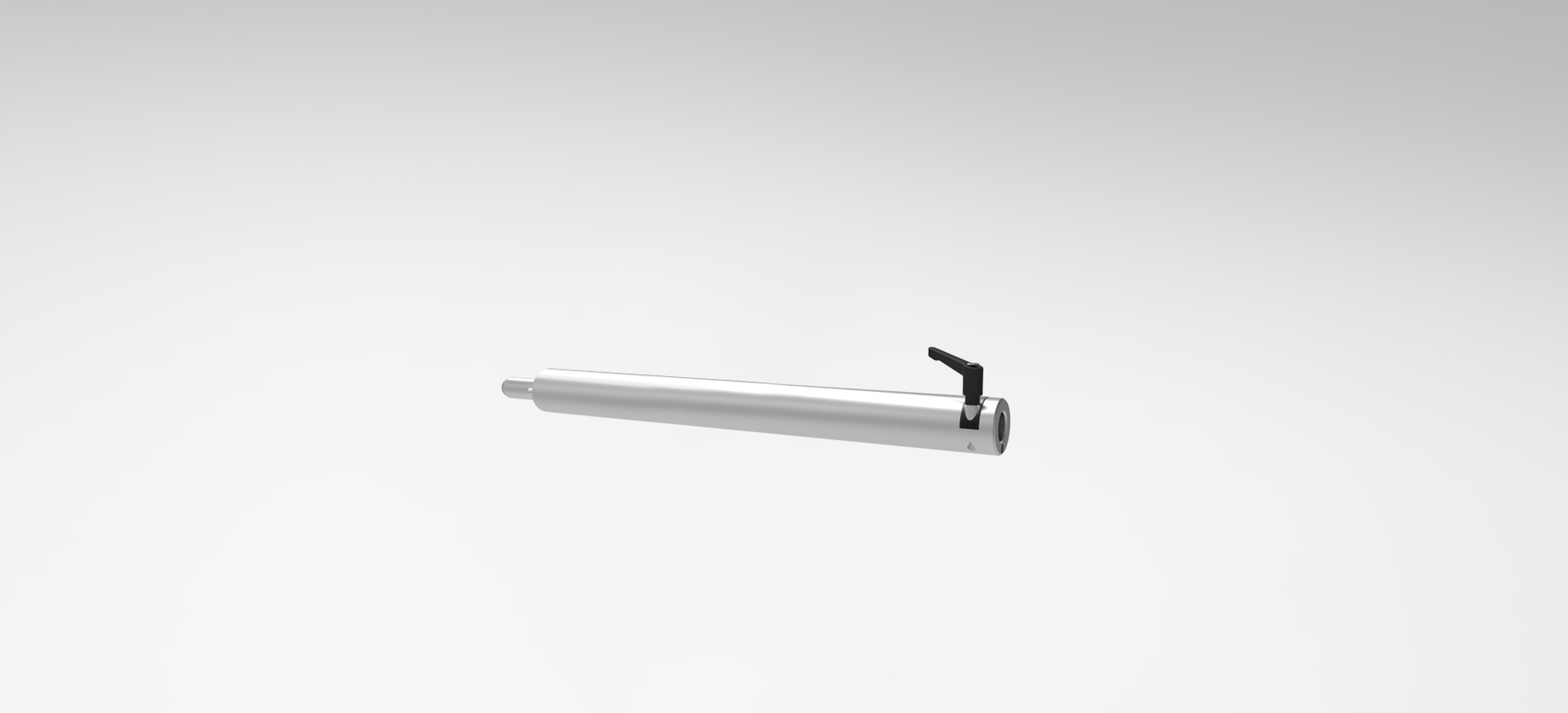

16 Inch Extension Bar

The 16 Inch Extension Bar is similar to the 8 Inch Extension in installation, but is used only in specific circumstances. An example of such a circumstance would be the use of an Eyegaze system.

Part # 8216

M2 Arm

The M2 arm is our lightest weight hydraulic arm. It provides a smooth, flowing, horizontal and vertical motion and is used to hold objects that range from 0 to 5 lbs. It is distinguished by two aluminum cylinders.

Part # 8074

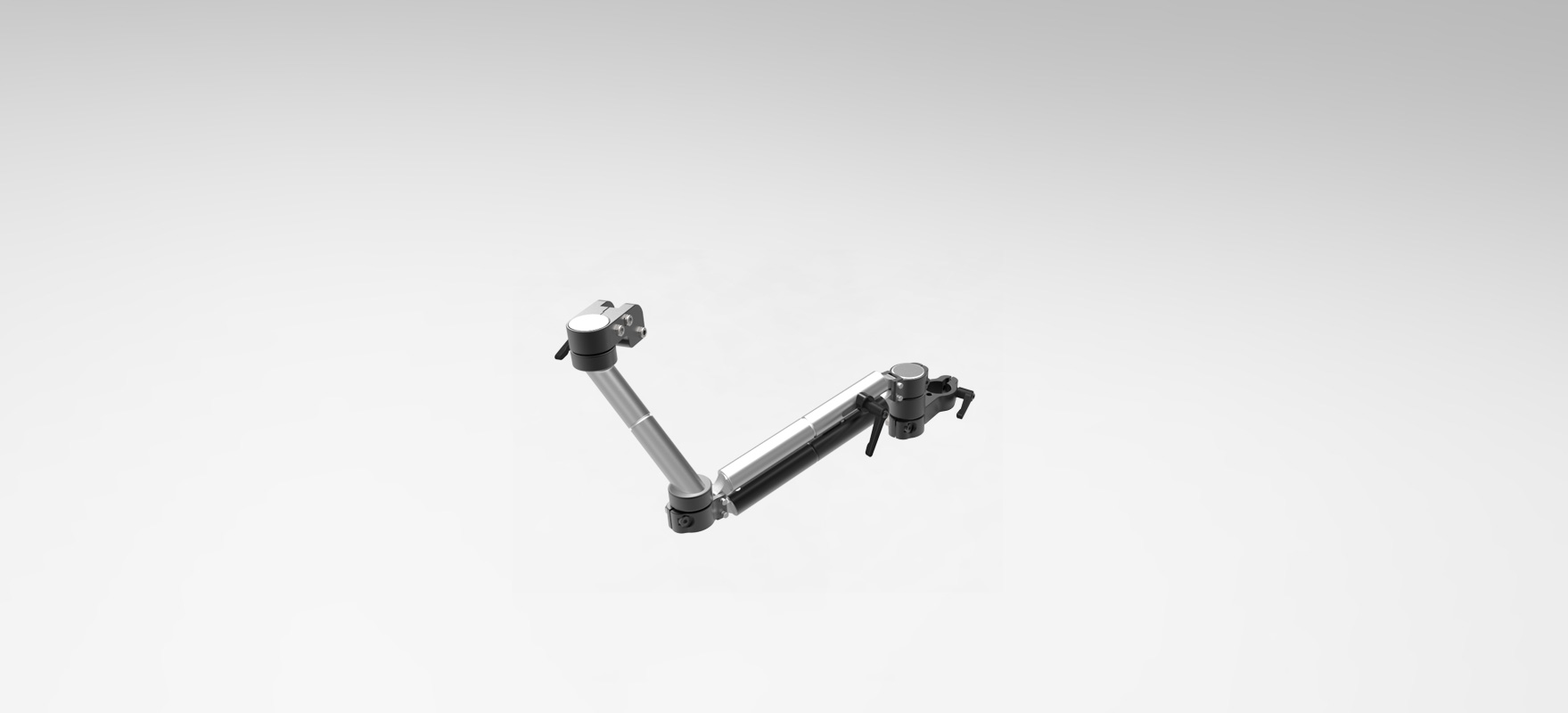

M2X Arm

The M2X arm is our middle weight hydraulic arm. It provides a smooth, flowing, horizontal and vertical motion and is used to hold objects that range from 5 to 10 lbs. It is distinguished by one black cylinder.

Part # 8069

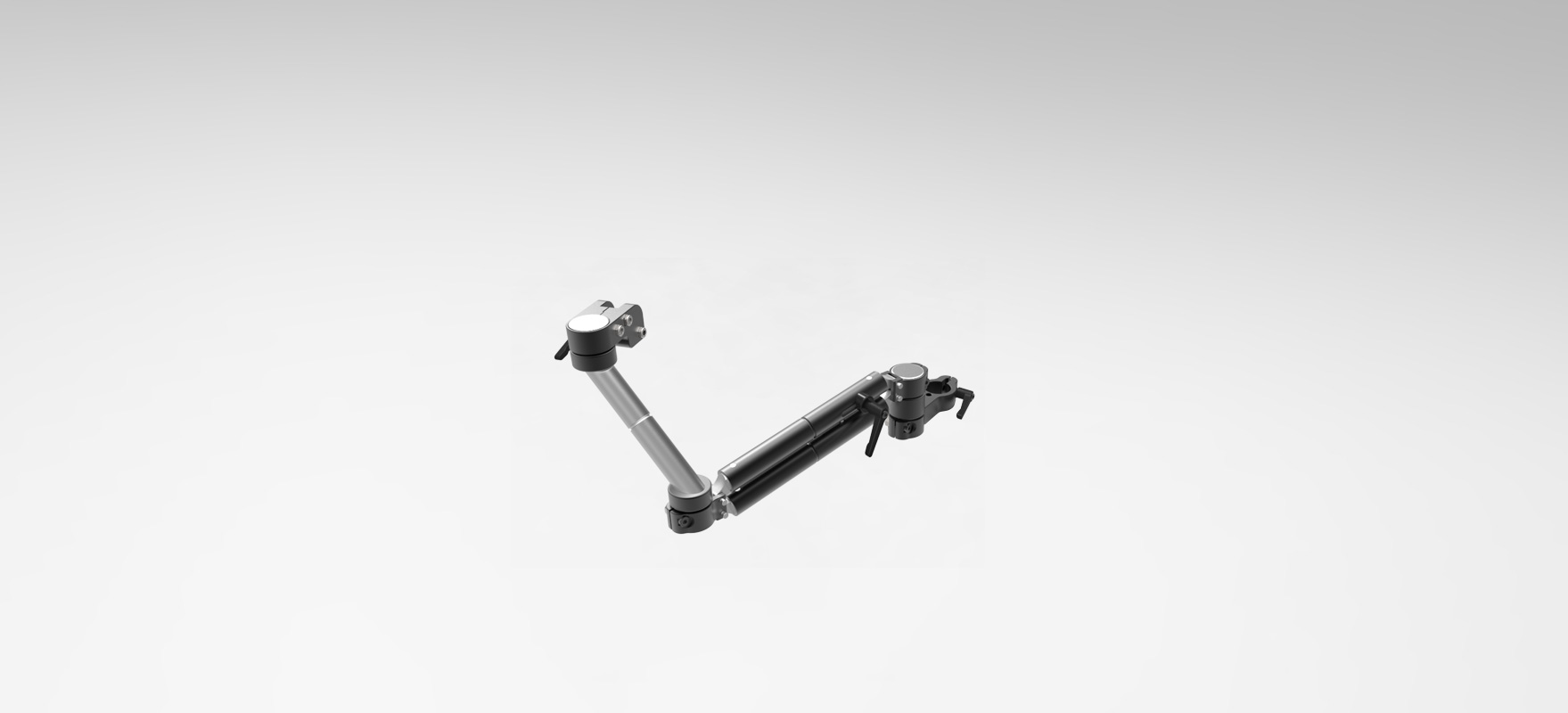

M2 Max Arm

The M2 Max arm is our heaviest weight hydraulic arm. It provides a smooth, flowing, horizontal and vertical motion and is used to hold objects that range from 10 to 15 lbs. It is distinguished by two black cylinders.

Part # 8127

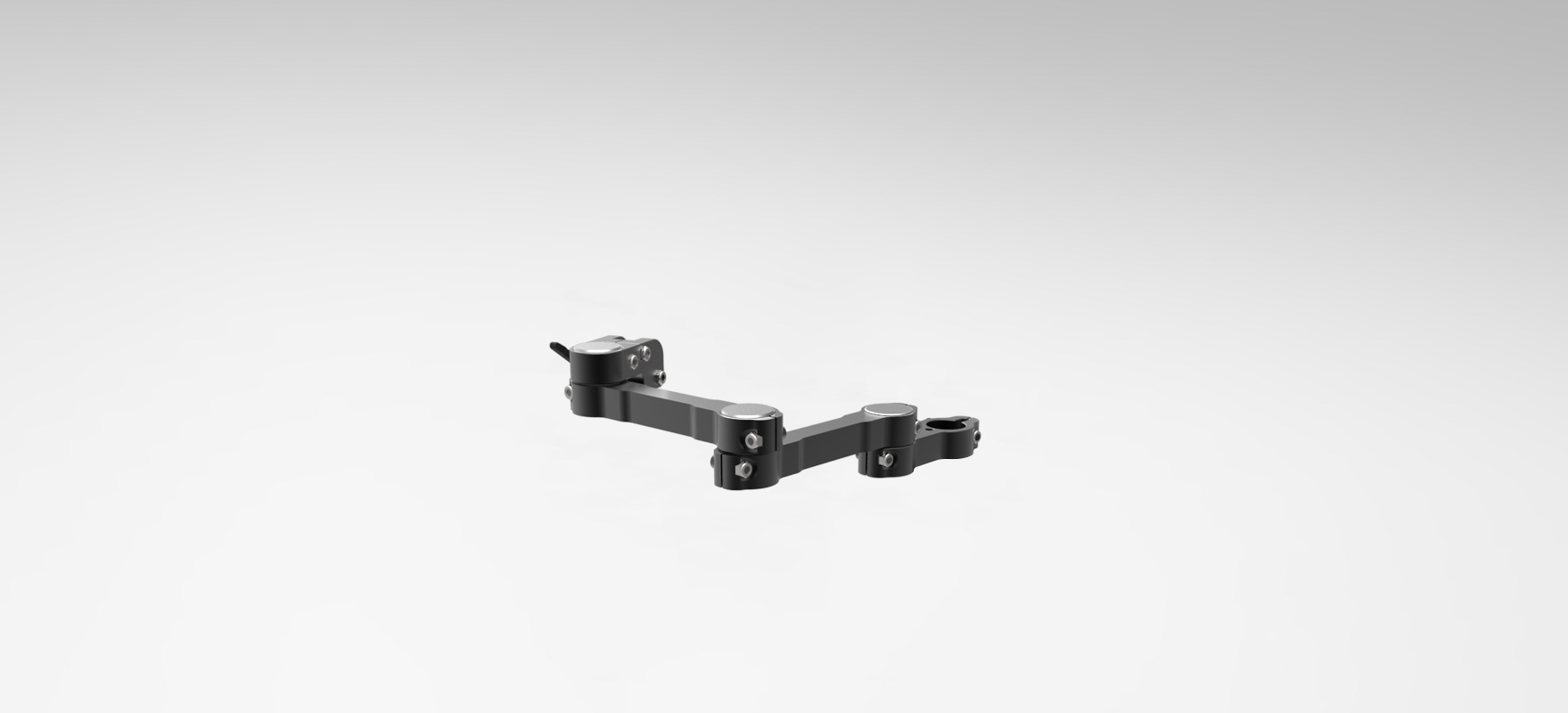

Articulating Arm

The Articulating Arm offers smooth horizontal movement and can hold large amounts of weight. It is easily locked in place or swung out of the way by tightening or loosening a handle.

Part # 8072

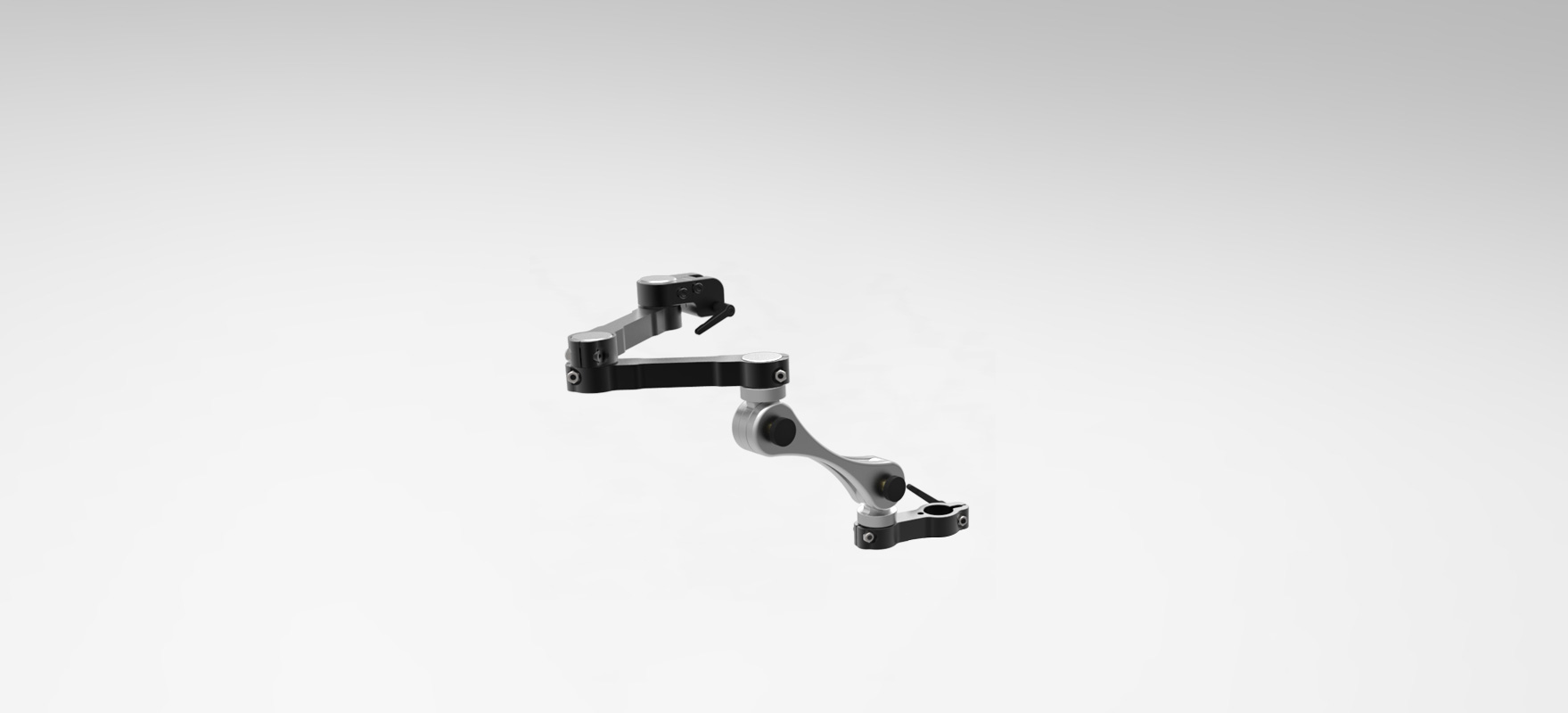

Articulating Arm with Riser

The Articulating Arm with Riser can hold as much weight as the Articulating Arm with the added vertical movement. The Click Riser locks the arm vertically in place but allow for easy movement.

Part # 8073

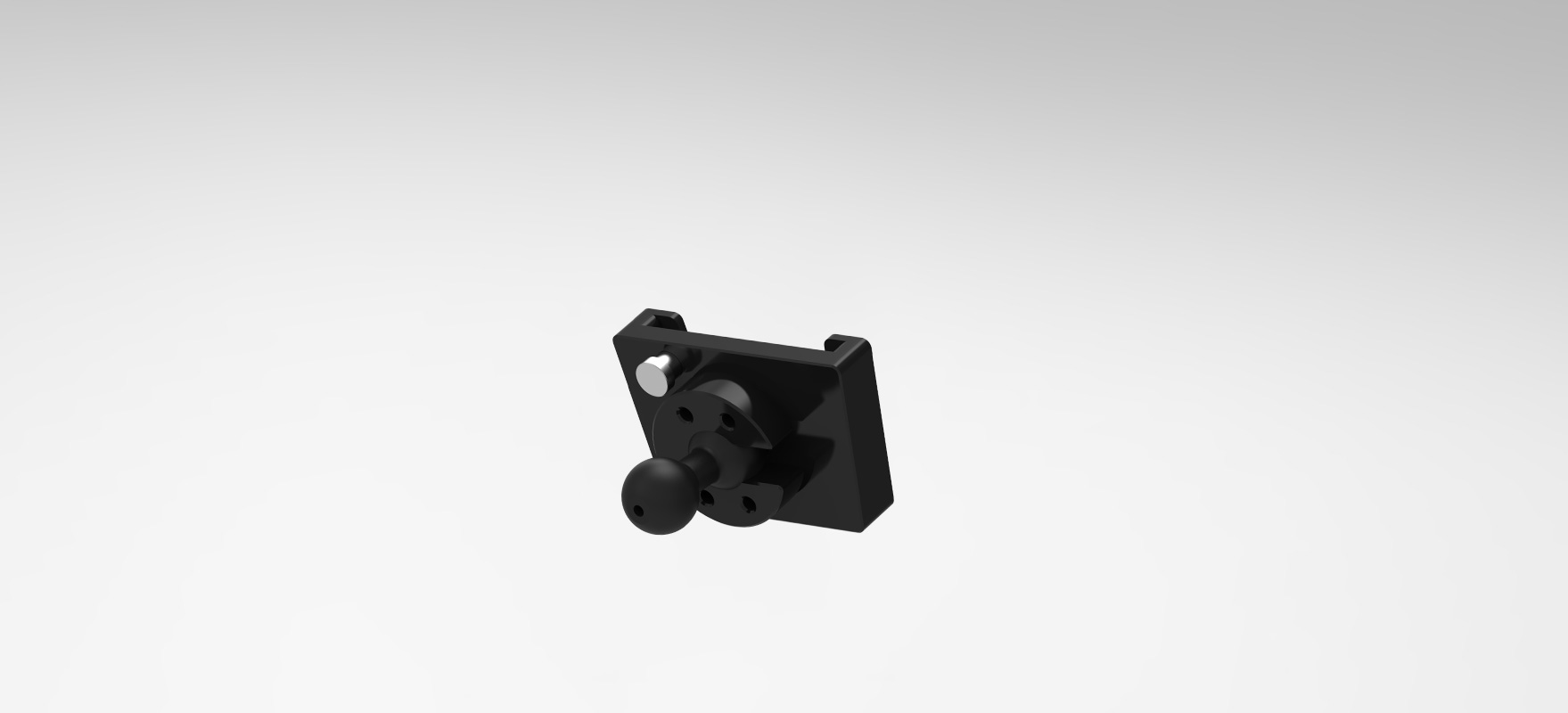

Rotary Wedge Receiver

The Rotary Wedge Receiver works on two pivot points to acheive more flexibility. The spring-loaded locator pin holds your device in place once the wedge slides into place. This receiver is intended to hold lighter weight objects.

Part # 8075

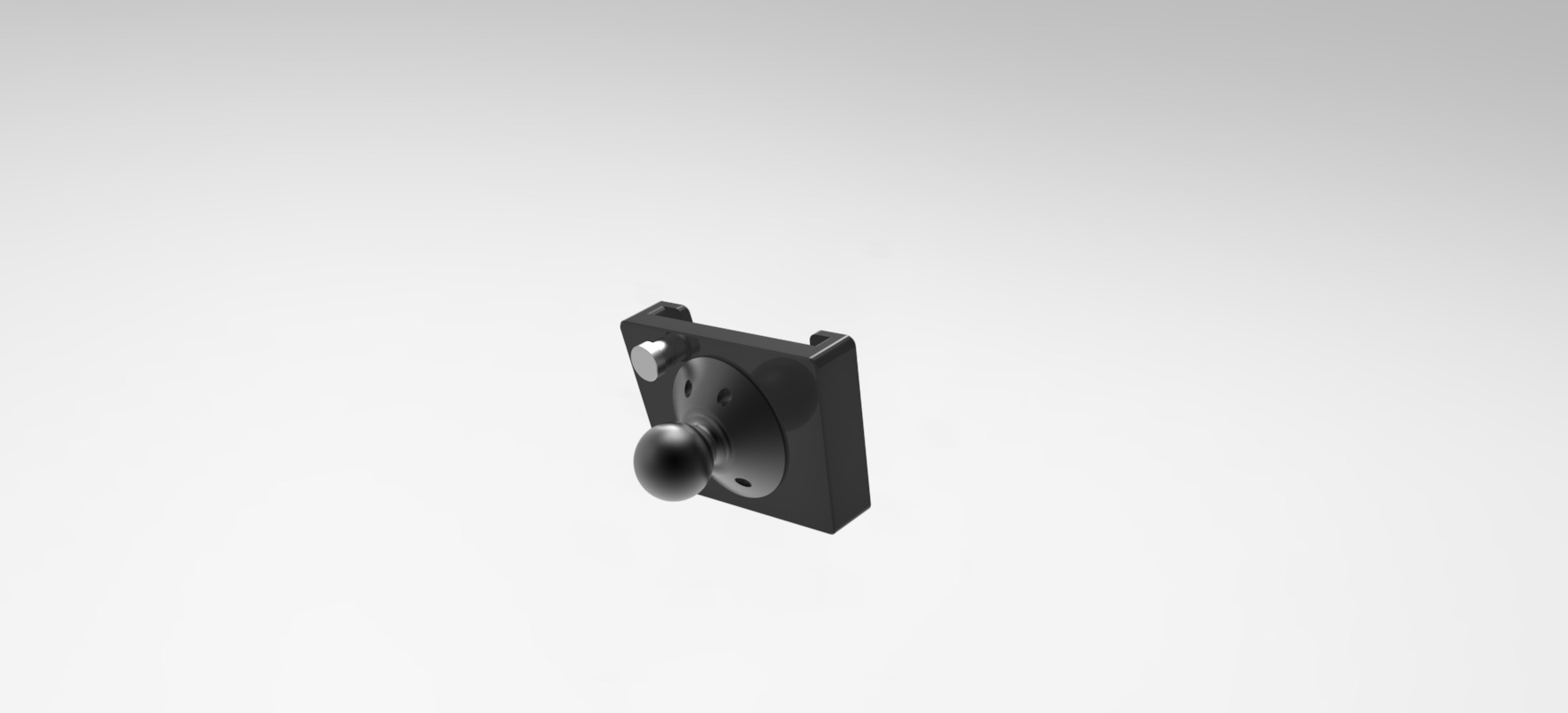

Lockable Wedge Receiver

The Lockable Wedge Receiver pivots on the rear-mounted pilon to tilt your device as desired. The spring-loaded locator pin holds your device in place once the wedge slides into place. This receiver is intended to hold heaver weight objects.

Part # 8076
